Range Hoods
Comparison
  • Direct Suction and Extraction
  • Side-Draft
  • Extra-wide Fume Baffle Plate
JQG9031
Extra-wide smoke intake and super-quiet powerful suction allowing deep frying in hot oil without smoke
Watch video
Buy Now
Product Details
Extra-wide Fume Baffle Plate Creates a No-smoke Zone 900 mm extra-wide fume baffle plate covers all burners from left to right, capturing oil fumes before they escape.
312 mm deep cavity forms a safety barrier to prevent you from breathing in harmful smoke and grease.
Instantaneous Absorption with One Key, No Fear of Even the Heaviest Oil Fumes in Deep Frying Featuring a special instantaneous absorption gear designed by FOTILE for a heavy oil smoke environment, it can reach the maximum airflow of 1,250 m³/h with one key, offering a powerful wind suction for 180 s that sweeps away any oil fume.

Patented Bionic Wing Impeller
Patent Number: ZL201320779032.7
No Deviation of Oil Fumes for Unstoppable Smoke Exhaustion Slanted at a 35° angle, the fan structure is ingeniously designed by FOTILE with the smoke source-smoke inlet-air passageway-exhaust vent in a line for direct suction/discharge and faster smoke exhaustion.

Patented Nautilus Air Passageway
Patent Number: ZL01132056.7
Completely Hands-free, Just Wave to Turn Powerful Suction On and Off With a gentle wave of your hand, the powerful suction is automatically turned on to handle oil fumes easily. Using infrared connectivity, you can simply wave at FOTILE range hood to turn it on and off without smudging the surface.
135° Open Angle Offering Unobstructed Field of Vision for Cleaning The fume baffle plate opens to an extra-wide 135° angle, offering an open and unobstructed field of vision for easy cleaning without dead ends.

Magnetic Oil Filter Easier to Remove and MountFOTILE magnetic oil filter can be automatically adsorbed when aligned with the required position. It is easy to remove and mount for hassle-free cleaning.
Auto Delay Off Function to Absorb Residual Smoke Fumes in the Kitchen Thoroughly After you are done cooking, press the Off button before leaving the kitchen. The hood will continue working for 2 min to vent all the residual smoke out.
Considerate Design for All-round Care -7.5° design offering a wide field of vision without concern about bumping your head.
1.5L super-large oil cup allowing an ultra-long replacement cycle.
Pure flat panel that can be cleaned effortlessly with a quick wiping.
One-key lock screen to prevent misuse.
Technical Parameters
  • Certification: CB
  • Product Size(mm)(W×D×H): 896X405X434
  • Power Supply: 220-240V 50Hz
  • Max Static Pressure(Pa): 450
  • Speed Setting: /
  • CFM: 1250
  • Noise Level(dB): 54
  • Min. Noise Level(dB): /
  • Illumination Power in LED: 1.5Wx2(LED)
  • Illumination level: /
  • Input Power: /
  • Motor: AC
  • Oil Cup: /
  • Oil Filter: Honeycomb mesh
  • Capture Shield: /
  • Control Type: Wave open/touch
  • Delay Shutoff: Y
  • Screen Lock: Y
  • Intelligent Self-Adjusting: /
  • Boost: /
  • CAT(CFM Adjustment Tech): /
  • Intelligent Air Management: N
  • Oil Filtration Rate: 90%
  • Smell Reduction Rate: 97%
  • Installation: /
  • Duct Type: /
  • Duct size: /
  • Net Weight(kg): /
  • Gross Weight(kg): /
  • Packing-Box Size(mm)(W×D×H): /
  • Motor power(W): 358
  • Reminding of replacement of cleaning mesh: /
  • No. of Speeds Fan Control: 2+S
  • Automatic Turbo System: N
  • Special Features: /

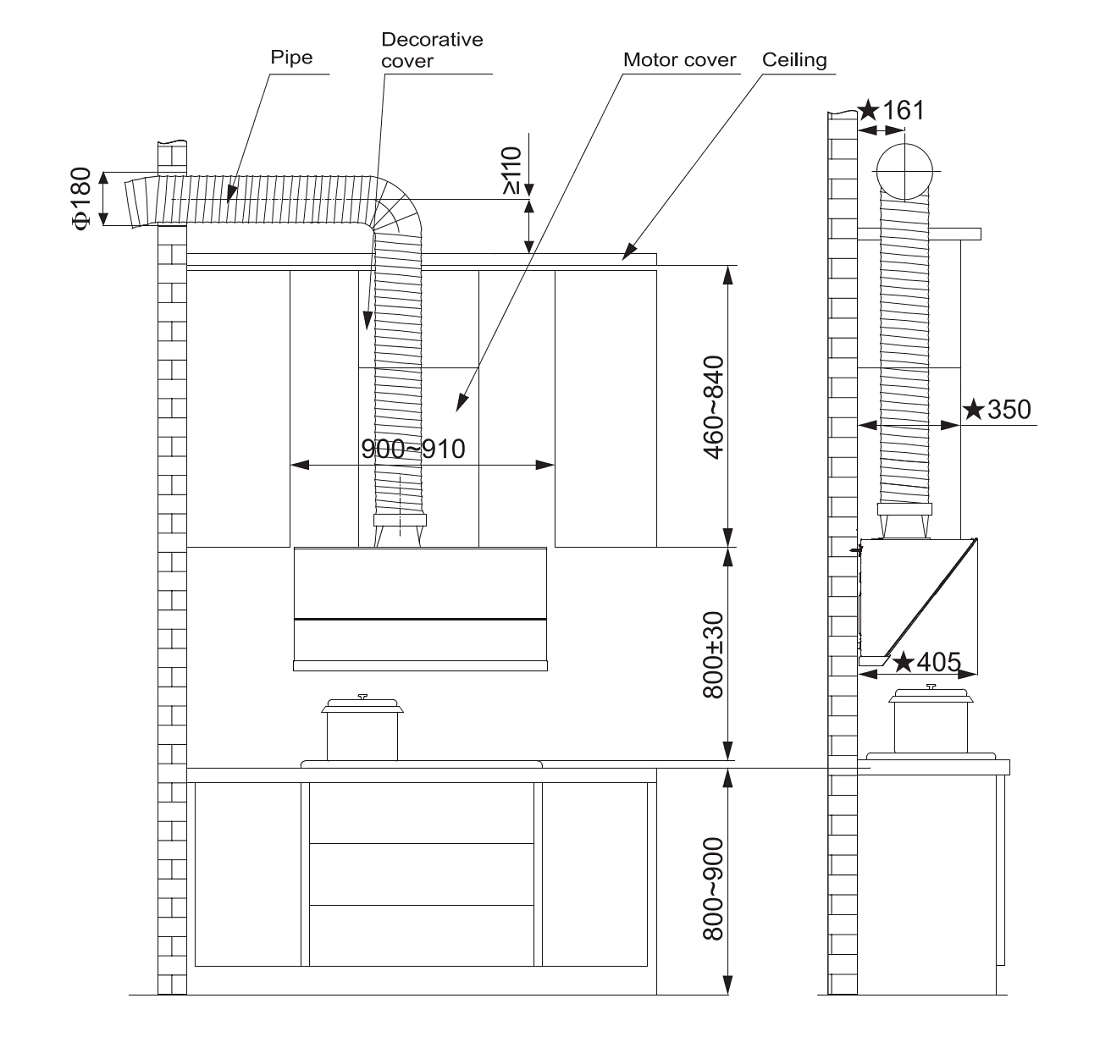

Installation Diagram
Wind tunnel installation ceiling installation diagram (unit: mm)
